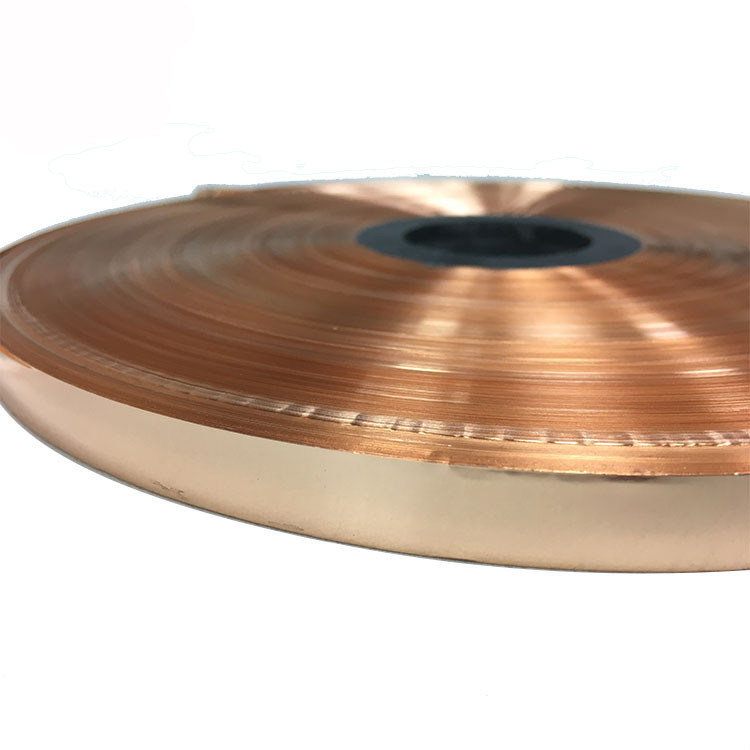

Ductiliteit EMI-bescherming gewalst puur RA-koperfolie

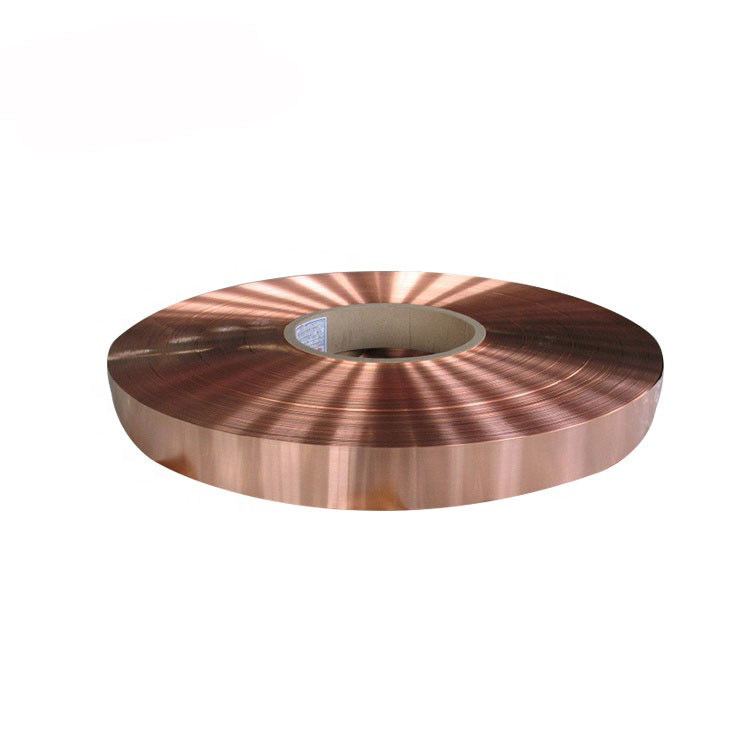

C11000 RA Koperfolie
,100um RA koperen folie
,50um RA koperen folie
Productbeschrijving
Toepassing
Gewalste Koperfolie heeft buitengewone sterkte, buigzaamheid, ductiliteit en een glanzend oppervlak, plus zijn uitstekende mechanische capaciteit, waardoor het onvervangbaar is als grondstof. Vooral bij gebruik voor transformatoren, flexibele koperconnectoren, CCL, FCCL, PCB, geothermische film, constructie, decoratie, enz.
| Dikte | Treksterkte | Rek | Temper | IACS |
| μm | kgf/mm2 | % | HV | % |
| 18±5 | ≥8 | ≥4 | 55-65 | ≥98.3 |
| 22±5 | ≥10 | ≥4 | 55-65 | ≥98.3 |
| 25±5 | ≥10 | ≥5 | 55-65 | ≥98.3 |
| 35±5 | ≥15 | ≥8 | 55-65 | ≥98.3 |
| 50±5 | ≥15 | ≥10 | 55-65 | ≥98.3 |
| 100±5 | ≥20 | ≥20 | 55-65 | ≥98.3 |
-
FPC FCCL FPCB 25μm 70μm Dunne RA-koperfolie
FPC FCCL FPCB 25μm 70μm Thin RA Copper Foil Dimension Range: Copper Foil thickness from 12~100µm can be supplied for FPC. Width can be made according to clients’ requirement up to 650mm. Applications: Flexible Copper Clad Laminate(FCCL), Fine Circuit FPC, LED coated crystal thin film, FPCB. Features: The material has higher extensibility, and has a high bending resistance and no crack. Table 1:FPC T2 high flex rolled copper foil properties (GB/T5230-2000,IPC-4562-2000) Item
-
T2 Geleidende Koperfolie Rol voor Hoge Temperatuur
T2 Conductive High Temperature Copper Foil Sheet Roll Product Profile : We developed out there treated copper foil that has very low profile, this kind of copper foil is best for high frequency application.The surface treated copper foil, like 18um, 35um, 50um usually used in Multi-layer and double face FPCB construction, We also produce heavy ED copper foil, mainly for high current FPCB construction. Mechanical Properties Sheet: Quality Items General Technical Terms 1/3oz 1
-
9um 12um 18um 35um Elektronische zachte pure koperen folie
9um 12um 18um 35um Electronic Soft Pure Copper Foil Description RA Copper Foil is rolled from pure copper ingots, the process including purifying copper ores, make into copper cathodes, ingoting, rolling, annealing, washing, testing, slitting and packing. Our copper ores are imported from South America, which were famous for their copper mining. This is high quality copper and has a wide range of applications based on conductivity, corrosion resistance, workability, and
Onze missie is om "High Quality" & "Good Service" & "Fast Delivery" aan te bieden om onze klanten te helpen meer winst te maken.
