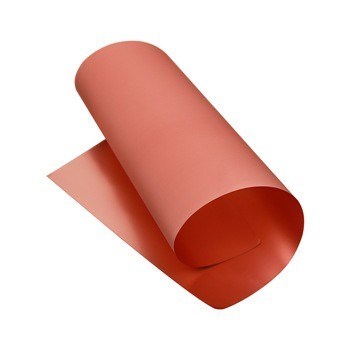

de Folie van het de Diktefpc ED Koper van 9um 12um 18um 35un 70um
Het Koperfolie van FPC ED
,70um ED-Koperfolie
,35um ED-Koperfolie
de Folie van het de Diktefpc ED Koper van 9um 12um 18um 35un 70um
Prodenteigenschap
1. Sterkte met grote trekspanning
2. Hoge Verlenging
3. Uitstekende etchability
4. Milieuvriendelijke producten en processen
5. vrij profiel
6. de behandelde folie is roze
Typische Toepassing: FPC, Graphene-Drager
De typische eigenschappen van Laag Ruw makenomgekeerde behandelden Coppe-Folie
| Classificatie | Eenheid | Vereiste | ||||
| Nominale dikte | / | 9um | 12um | 1/2 oz (18um) | 1 oz (35um) | um 70 |
| Gebiedsgewicht | g/㎡ | 87±4 | 107±4 | 153±5 | 285±10 | 585±20 |
| Zuiverheid | % | ≥99.9 | ≥99.9 | ≥99.9 | ||
| Ruwheid | Glanzende kant (Ra) um | 0.25±0.1 | 0.25±0.1 | 0.25±0.1 | 0.25±0.1 | 0.25±0.1 |
| Glanzende kant (Rz) um | 1.5±0.5 | 1.5±0.5 | 1.5±0.5 | 1.5±0.5 | 1.5±0.5 | |
| Steenkant (Rz) um | Max.1.4 | Max.1.4 | Max.1.4 | Max.1.4 | Max.1.4 | |
| Steenkant (Rz) um | Max.1.4 | Max.1.4 | Max.1.4 | Max.1.4 | Max.1.4 | |
| Treksterkte | R.T. (23℃) | ≥350 | ≥350 | ≥350 | ≥350 | ≥350 |
| H.T. (180℃) Mpa | ≥200 | ≥200 | ≥200 | |||
| Verlenging | R.T. (23℃) | ≥5 | ≥6 | ≥8 | ≥10 | ≥15 |
| H.T. (180℃) % | ≥5 | ≥6 | ≥8 | ≥10 | ≥15 | |
| Glans (60℃) | - | ≥450 | ≥550 | ≥600 | ≥600 | ≥650 |
| Pinholes&porosity | Aantal | Nr | ||||
| Anti-oxidatie H.T. (200℃) | Notulen | 30 | ||||
